Flexlift, Made in Germany
Compact Lift Tables Switzerland: Flexlift FK Series
Modular FK series with FK-D and FK-T · Load capacities 500 to 10,000 kg · Lift travel up to 1,600 mm
The FK compact scissor lift table (also known as a lifting platform) is the universal entry into the Flexlift world: modular construction system, robust scissor mechanism, closed heights from 180 mm. The series covers load capacities from 500 to 10,000 kg and offers a maximum lift travel of 1,600 mm. For large lift heights there is the FK-D double scissor, for large platform lengths the FK-T tandem scissor. All FK lift tables comply with EN 1570 and the Machinery Directive.
Model FK
Compact Lift Table FK
The modular FK series offers scissor lift tables in a compact design with closed heights from 180 mm. Together with the extensive accessory programme, the modular construction system covers the majority of all applications: assembly lift tables for ergonomic workplace design, lift tables for loading areas and system lift tables for continuous use in conveyor technology. A maintenance opening keeps the drive components easily accessible even in the lowest position. Custom solutions are available for special requirements. Not sure which design suits your application? Our guide Choosing the Right Lift Table compares designs and drives.
| Variants | FK / FK-D (double scissor) / FK-T (tandem scissor) |
|---|---|
| Load capacity | 500 – 10,000 kg |
| Lift travel | up to 1,600 mm |
| Closed height | from 180 mm |
| Design | Modular construction system, scissor mechanism |
| Standards | EN 1570, Machinery Directive |
| Delivery time | short (partially ex stock) |
The Three FK Variants at a Glance
Standard, double scissor or tandem scissor: the right design for every task.

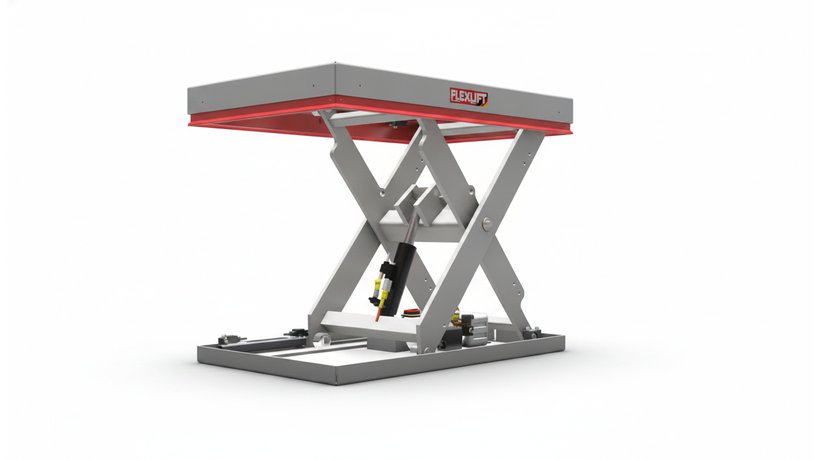

FK Standard

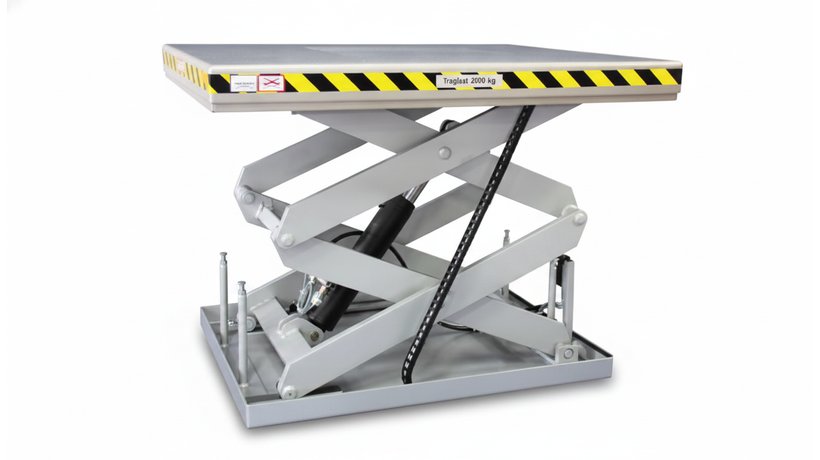

FK-D Double Scissor
For large lift heights with a short platform.

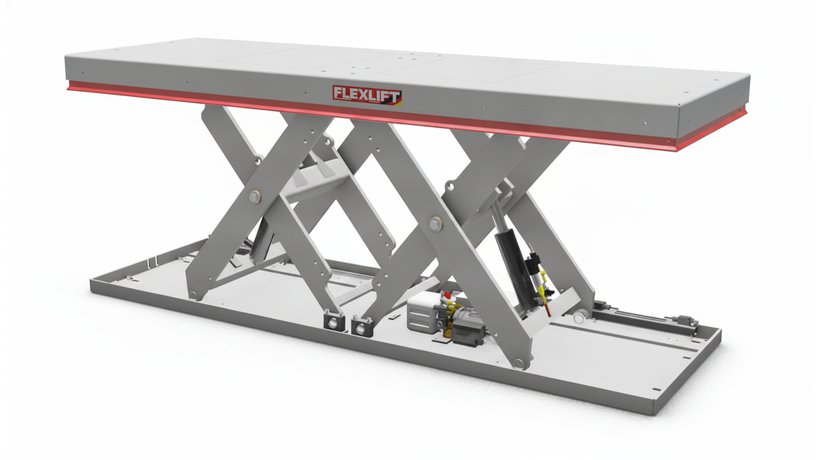

FK-T Tandem Scissor
For large platform lengths.
Your Benefits at a Glance
Modular & flexible
Platform sizes, lifting heights and controls freely combinable. Easy adaptation to existing systems.
Short Delivery Times
Standard sizes partially available ex stock. Minimal waiting times for urgent projects.
Proven Scissor Mechanism
Robust hydraulic scissor construction. Reliable for high cycle rates in multi-shift operation.
Application Areas
The FK compact lift table is used wherever fast, safe and ergonomic lifting is required.
FK Brochure Download
All details on the FK series with FK-D and FK-T are in the Flexlift FK brochure (German). Further Flexlift products are shown in the complete catalogue.
Do you have questions about the Compact Lift Table FK?
We will be happy to advise you personally and find the right FK model for your requirements.
