Flexlift, Made in Germany
FE · FE-A · FE-M · F-CE · FM · FMA · Load capacities 300 – 8,000 kg · Installed height from 55 mm · Made in Germany
The flat form lift tables (also known as lifting platforms) from Flexlift are used across all industries. With an installed height from 55 mm, they enable ground-level loading without pit installation: ideal for ergonomic workstations, pick & pack, assembly stations and material staging. Six series cover the applications: FE and FE-A for pallets, the modular all-rounder FE-M, F-CE with a closed platform, FM in a narrow design up to 8,000 kg, and FMA with an E/U-shaped platform for transport trolleys. Made in Germany, also available in system configurations for high cycle rates in multi-shift operations.
Model FE
The FE is specialised for handling Euro and special pallets. The table platform is barely larger than the standard Euro pallet. The operator therefore has only short reaching distances to the load from all sides and can, thanks to foot clearance, comfortably stand and work at the lift table. The role low-profile lift tables play in order picking and pallet handling is covered in our guide Lift Tables in Intralogistics. The FE can also be ordered as a mobile version (four castors instead of the two fixed bearings and two rollers, manoeuvred with the lever roller like a pallet truck); see our guide Lift Table Trolley or Mobile Lift Table?
| Load capacity | 300 – 2.000 kg |
|---|---|
| Standard width | 910 mm (Euro pallet) |
| Alternative width | 1,150 mm (industrial pallet) |
| Custom widths | on request |
| Drive | Hydraulic / electromechanical |
Model F-CE
The F-CE series offers flat lift tables with a rectangular, closed platform. Applications: ergonomic workstations, pick & pack, assembly stations, material staging at machines. Optionally with a short ramp for flush-floor loading without pit installation.
| Load capacity | 300 – 2.500 kg |
|---|---|
| Lifting height | up to 950 mm |
| Installed height | from 70 mm (at 500 kg) |
| Platform sizes | various, on request |
| Option | Ramp (flush-floor) |
| Configuration | System configuration available |

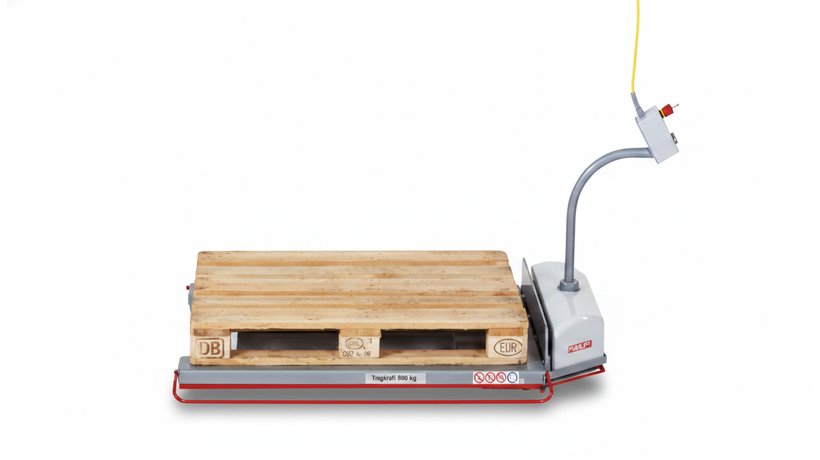

Model FE-A
On the FE-A, the hydraulic power unit and control are attached directly to the platform, with power supplied from above via a spiral cable. This means no trip hazards from floor-level cables at the workstation. The operating arm swivels through approx. 180 degrees and can be positioned flexibly towards the operator.
| Load capacity | 300 – 2,000 kg (6 types) |
|---|---|
| Installed height | 70 – 100 mm (with power unit 210 mm) |
| Lift height | 750 mm (with power unit 910 mm) |
| Usable stroke | 650 – 680 mm |
| Platform (W×L) | 910 × 1,300 mm (length with power unit 1,538 mm) |
| Special feature | Power unit and control on the platform, spiral cable from above |
Model FE-M
The FE-M is the modular all-rounder among the flat form lift tables: add-on modules adapt the table to the task at hand. Available modules include a 360-degree turntable, a roller conveyor attachment and a container tilting device with 17 to 25 degrees of tilt.
| Load capacity | 300 – 2,000 kg (6 types) |
|---|---|
| Installed height | 70 – 100 mm |
| Lift height | 750 mm |
| Usable stroke | 650 – 680 mm |
| Platform (W×L) | 910 × 1,300 mm |
| Modules | 360° turntable, roller conveyor attachment, container tilting device 17 – 25° |

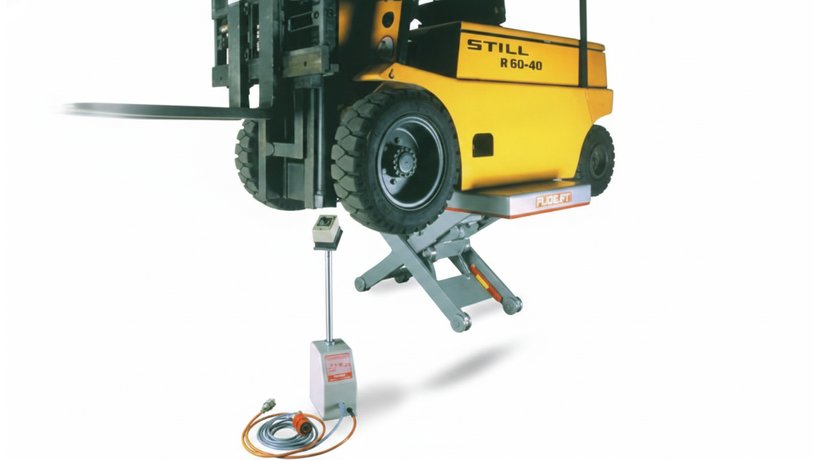

Model FM
The FM series, also known as the "Mucki", offers flat form lift tables for heavy loads in a narrow design: platform widths from 500 mm, load capacities up to 8,000 kg, installed heights from 65 mm. Thanks to its high load capacity, the FM is frequently used for forklift maintenance.
| Load capacity | 500 – 8,000 kg |
|---|---|
| Installed height | 65 – 160 mm |
| Lift height | 700 – 1,250 mm |
| Usable stroke | 540 – 1,165 mm |
| Platforms (W×L) | 500 × 1,300 to 1,100 × 2,300 mm, others on request |

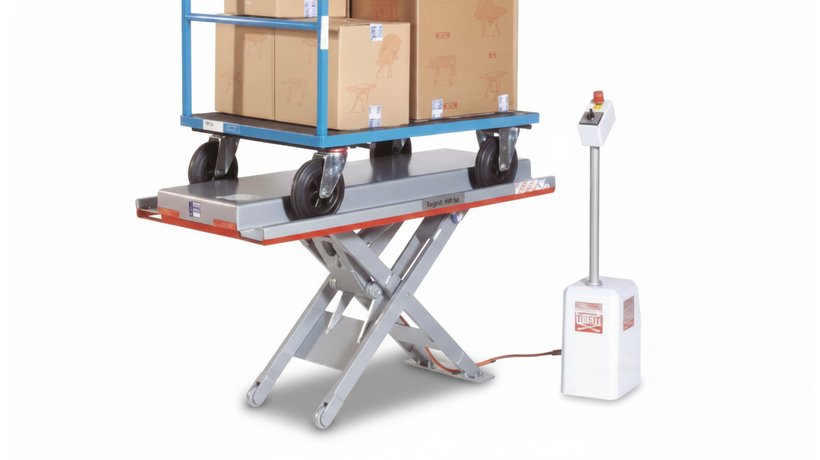

Model FMA
The FMA is the flat form lift table for picking up transport trolleys: its E/U-shaped platform is designed for wheeled trolleys, so the trolley stands directly on the table and is raised to working height without a ramp or pit.
| Load capacity | 500 / 750 / 1,000 / 1,500 kg |
|---|---|
| Installed height | 75 – 95 mm |
| Lift height | 750 mm |
| Usable stroke | 655 – 680 mm |
| Platform | E/U shape, length 1,380 mm, width outer/inner 866/550 or 850/600 mm |
Digital & CAD-Ready
99 % of all Flexlift components are available as STP files, for seamless integration into your CAD software, BIM planning or digital production documents. Plan precision workstations, transfer systems or installation positions directly on screen, before a single screwdriver is used. To see how these files help you design a floor pit, read our guide Lift Table Pit Installation.
Flexlift offers additional specialised series for the most demanding applications: from oil-free spindle drive to high-lift.
Model SFL
Oil-free electromechanical spindle drive. Up to 12,000 kg, positioning accuracy ±1 mm: ideal for food, pharmaceutical & cleanroom applications.
Model RFK
Wedge spreading system with belt drive, lifting heights up to 6,000 mm, load capacities 500–12,000 kg. For automation & transfer systems.
Model FK
Modular FK series: load capacities 500–10,000 kg, closed heights from 180 mm, short delivery times, robust and economical.
Discover the complete product range of FLEXLIFT Hubgeräte GmbH in the interactive PDF catalogue.
We will be happy to advise you personally and find the optimal solution for your requirements.
